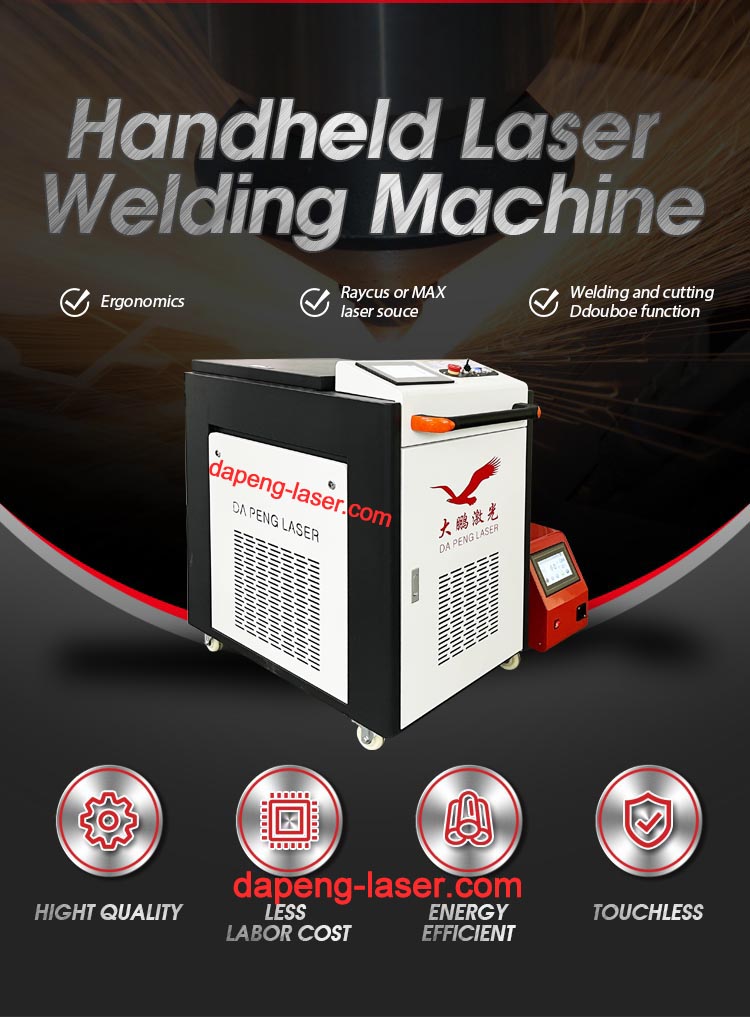

Handheld fiber laser welding machine

The laser welding machine adopts 100-2000 watt fiber laser, which has high photoelectric conversion efficiency and long life of 100,000 hours. The energy provided by electric energy is 25%-30% converted into laser energy, and the photoelectric conversion

Tel：+86-18565695703
Immediately consult

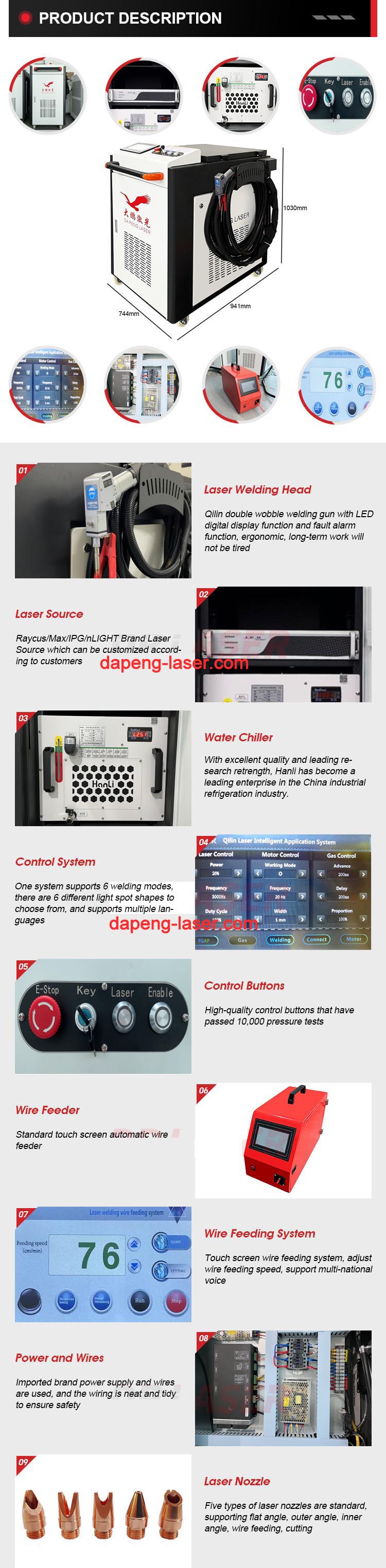

Product overview

Feature:

1.The energy density is high, the heat input is low, the amount of thermal deformation is small, and the melting zone and the heat-affected zone are narrow and deep.

2.High cooling rate, which can weld fine weld structure and good joint performance.

3.Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly increasing work efficiency.

4.The weld seam is thin, the penetration depth is large, the taper is small, the precision is high, the appearance is smooth, flat and beautiful.

5.No consumables, small size, flexible processing, low operating and maintenance costs.

6.The laser is transmitted through fiber optics and can be used in conjunction with a pipeline or robot.

Application:
It is widely used in the automotive, machinery manufacturing, medical equipment, shipbuilding, chemical industry, aerospace, aviation, power battery and daily necessities industries.

Specification:

Power	1000W, 1500W, 2000W
Laser wavelength	1080nm
Output power stability	＜3%
Frequency	50Hz-5KHz
Adjustable power range	10-100%
Beam quality	1.1
Output fiber length	10m
Cooling method	Chiller inside
Laser source	Raycus/MAX
Welding head	Wobble welding head
Handheld safety controller	Prevent accidental laser emit
Dimensions	10460120cm
Weight	200kg

sales@dapeng-laser.com Whatsapp:+8618565695703 Contact KENDY and send you machine teaching videos and manual for free.
