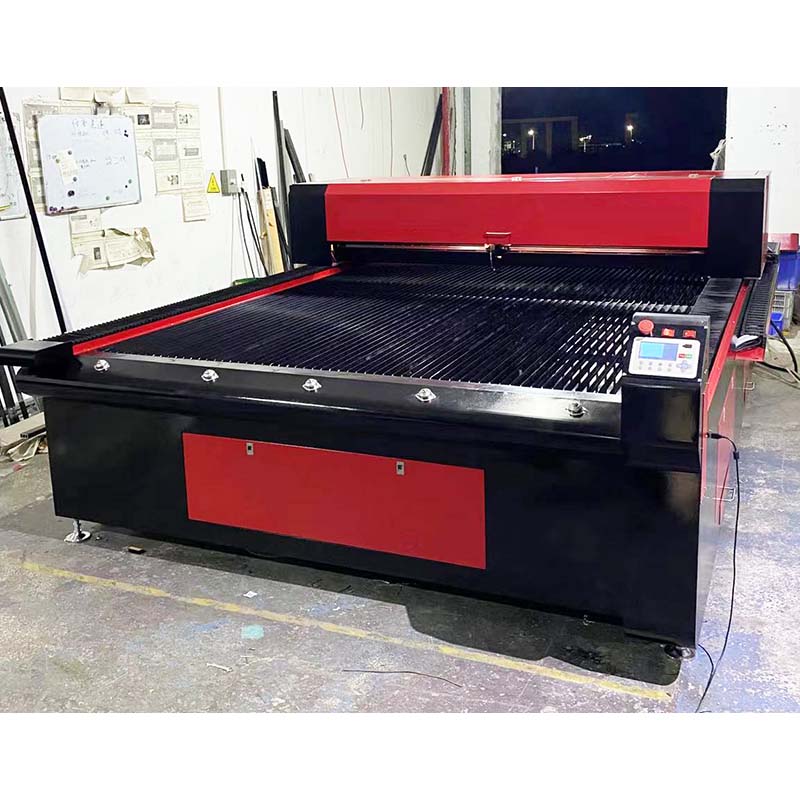

Glass tube CO2 laser engraving and cutting machine

Shoe processing cutting, shoe material hollow carving; clothing appliqué embroidery, weaving, trademark cutting, clothing accessories, silk, perforation, trimming;

Tel：+86-18565695703
Immediately consult

Product overview

Product advantages:

Laser processing has no mechanical pressure on the workpiece, so the effect of cutting the product, precision and cutting speed are very good, the operation is stable, the incision is fine and smooth, and it also has the characteristics of safe operation and simple maintenance, and can work continuously for 24 hours.
The cut non-woven fabric non-woven fabric does not yellow, the automatic edge does not scatter, does not deform, does not harden, the size is consistent and accurate; no burrs, size standard, small error, soft effect, no high frequency or knife The hard feeling of die cutting. Can cut any complex shape; high efficiency, low cost, computer design graphics, can cut any shape of any size lace.

Application range:

Shoe processing cutting, shoe material hollow carving; clothing appliqué embroidery, weaving, trademark cutting, clothing accessories, silk, perforation, trimming; leather punching, stakeout, cutting; plexiglass, plastic, fiberboard, PVC , paper, wood and bamboo cutting; wood bamboo, ceramics, granite, shadow carving industry carving.

Specification:

Model	CO2-80-9060,CO2-100-9060,CO2-130-9060,CO2-150-9060 CO2-80-1390,CO2-100-1390,CO2-130-1390,CO2-150-1390 CO2-80-2513,CO2-100-2513,CO2-130-2513,CO2-150-2513
Laser power	80/100/130/150
Laser wavelength	10.64um
Continuous operation	24hours
Transfer method	Double drive straight line
Platform repeat positioning accuracy	±0.01mm
Cutting size	900mm600mm/1300mm900mm/2500mm*1300mm
Minimum line width	0.1mm
Electricity demand	AC220V/50HZ
Cooling method	Water cooling
Optimal environmental requirements	Temperature 0-40℃, humidity 20% -80%
Weight	500KG
Dimensions	150186110 cm

sales@dapeng-laser.com Whatsapp:+8618565695703 Contact KENDY and send you machine teaching videos and manual for free.
